HDZero Whoop Lite VTX

  • Sale
  • $54.99


This is the VTX (only) from the revolutionary HDZero Whoop Lite combo. This individual product allows you to replace a damaged camera without buying the HDZero Nano Lite Camera and mipi cables too!

Here's what HDZero has to say about it:

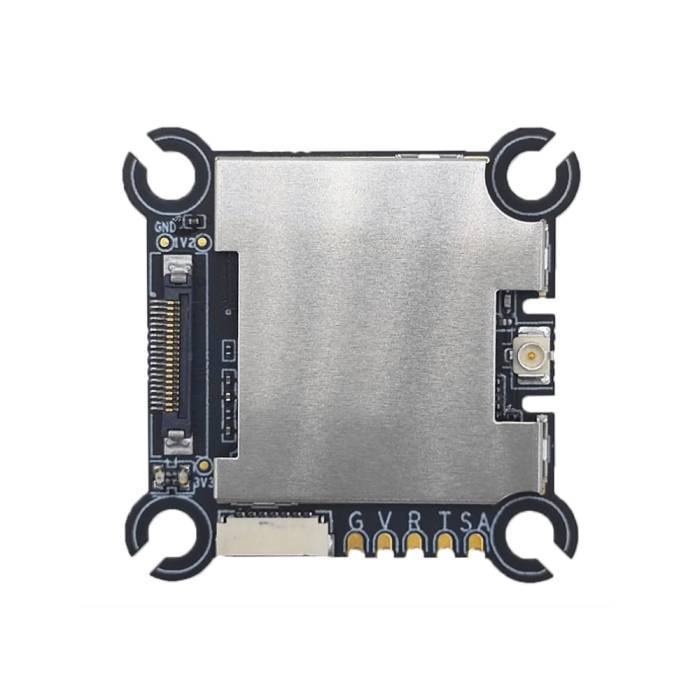

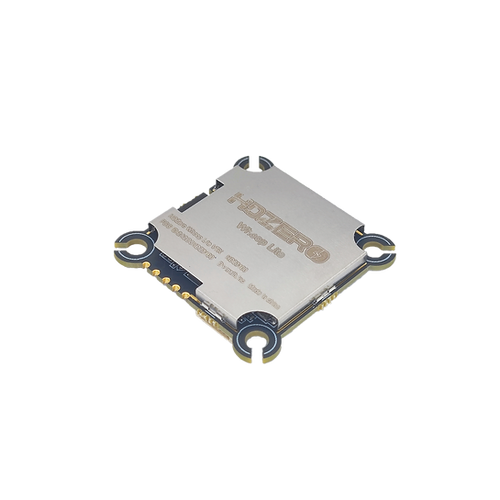

The HDZero Whoop Lite VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It is designed for racing.  It works with the Shark Byte RX5.1 goggle module to receive video.

Specifications

Model:

HDZero Whoop Lite VTX

SKU:

HDZ3100

Frequency:

5.8G

Resolution Default:

1280*720@60fps

RF power:

25mw/200mw

RF Connector:

U.FL

Interface:

4 lane MIPI CSI YUV422

Video Connector:

20 Position 0.30mm Pitch

Size:

32.4x32.5mm (29x29mm inner)

Weight:

4.5grames/4mm Thickness (w/o shielding)

Power

1000mA@5V

power input

1S-3S

Mounting:

25.5x25.2 M2 soft mounting



Includes



HDZero Whoop Lite VTX x 1

Power/Uart Cable x 5

Zip ties x 2

Rubber Grommet (M3 to M2) x 4



MIPI cable Not included - Click here if ya need one!
