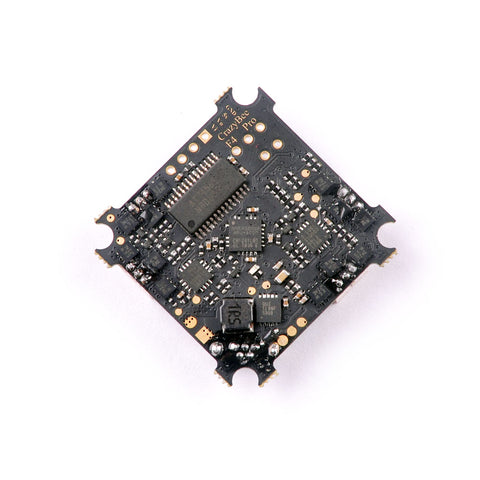

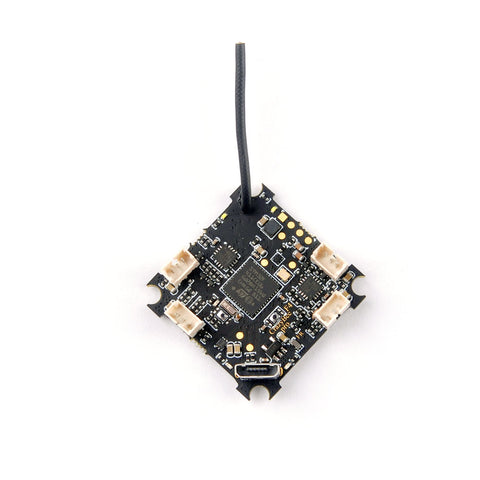

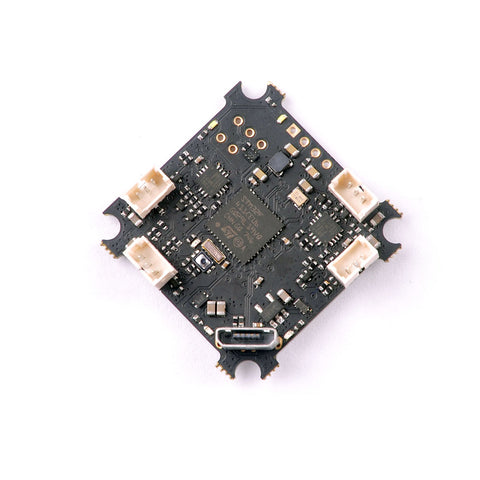

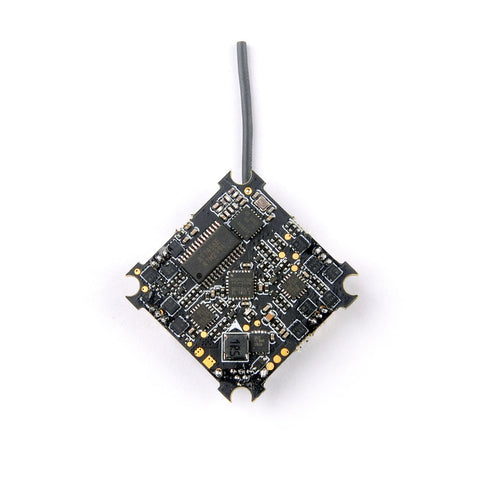

NOTE - this board is for Brushless builds only!
I love this all-in-one 1S/2S Flight Controller/receiver/4-in-1 ESC combo! It's got F4 processing power, OSD, and is very lightweight. It's easy to work with using the good old betaflight configurator and is available with integrated receivers that are compatible with either FrSky, DSMX, or FlySky.
**For FrSky Users: Make sure to bind in FrSky_D under configuration and D8 in your radio. You will experience short-range and unexpected failsafe otherwise!**
Check out these stats:
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2S battery input (DC 3.5-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
ESC MCU Upgraded to EFM8BB21
Frsky-compatible version - Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
Flysky-compatible version - Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS-2A Compatible)
DSMX-compatible version - Built-in Serial-based DSM2/DSMX compatible satellite receiver(Default RX2 was used for DSM2/DSMX receiver）
No RX version supports external serial-bus receivers like the xm+, crossfire, S-FHSS, Dsm2/DSMX, Ibus protocol, etc.
Built-in Betaflight OSD (SPI Control)
Built-in Current meter sensor Max up to 28A
The current meter scale is set to 1175
Built-in 5V 1A Buck / Boost with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Multi Serial port support
Weight:4.2g
- Onboard 4in1 ESC
- MCU upgraded to EFM8BB21
- Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v)
- Current: 5A continuous peak 6A (3 seconds)
- Support BLHeliSuite programmable
- Factory firmware: S_H_50_REV16_7.Hex
- Default protocol: DSHOT600

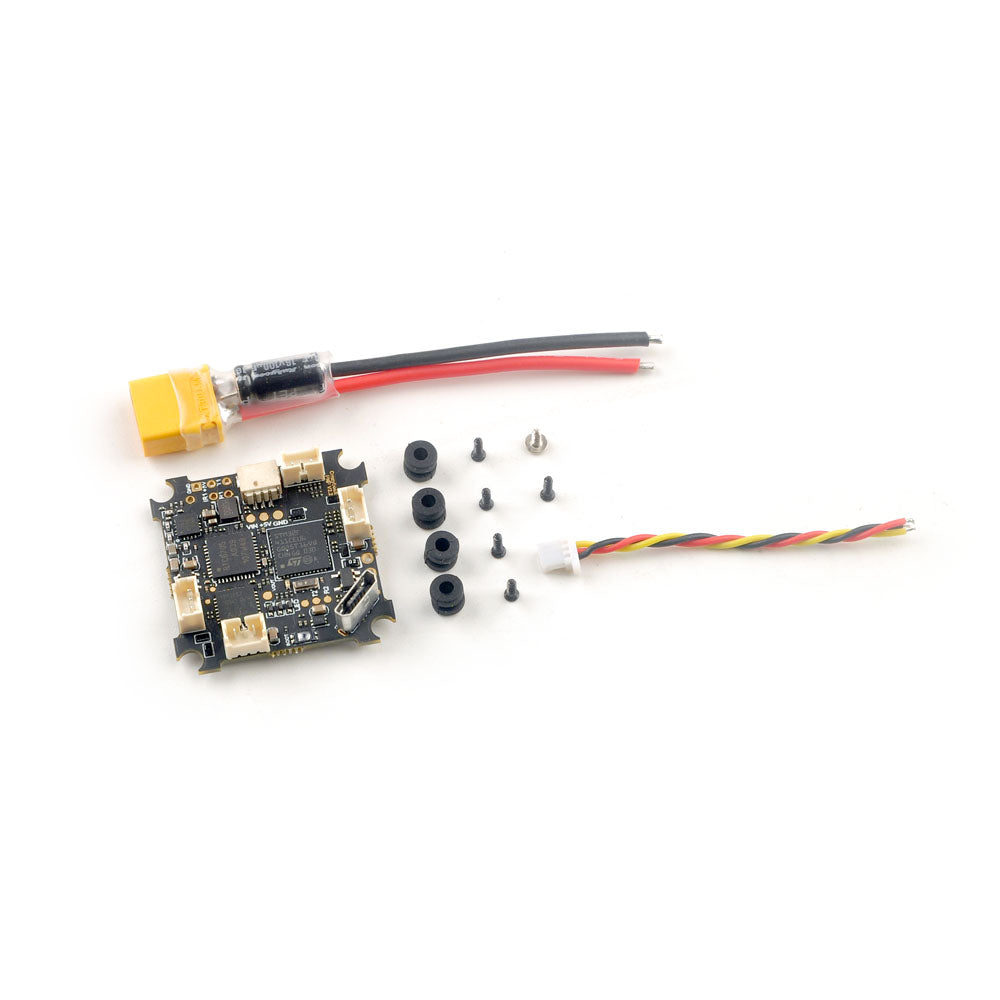

- Package includes:
- 1 x CrazybeeF4 PRO flight controller
- 2 x Power cables
- 1 set of Shock-absorbing rubber and screws
NOTE - Butterflight may experience some problems with this board - if that's the case switch to Betaflight!
Here are the product manuals:
Crazybee F4 Pro FRSKY-compatible Manual
Crazybee F4 Pro DSMX-compatible Manual
Crazybee F4 Pro FLYSKY-compatible Manual
Crazybee F4 Pro NO RECEIVER Manual
Note - use the manual specific to your board, not these diagrams:
