1202.5HEX 11500KV SCOUT Tiny Whoop/Fractal Engineering Brushless Motors

  • Sale
  • $11.99


I couldn't be more proud to partner with Fractal Engineering to bring you this customized 1202.5 motor! This is the sweet spot for 18650 1S builds like the Wingman! We chose custom coloring, an ideal wire length, a 1.5mm shaft and a pcb to allow for easy maintenence. We decided to call it the Scout, because it's meant to be a used for long cruising adventures aboard the wingman, which is known for long flight times

It was a real pleasure working with Yves at Fractal Engineering when discussing the idea and specs of this motor. I'm proud to report that Yves was always kind, creative, thoughtful and genuinely community-orniented. When I began to realize the way Yves is dedicated to treating the community, I got really excited to collaborate on this unique motor.

Click here for some other Wingman products!



Features

  • Lightweight and efficient
  • Curved magnets, low airgap

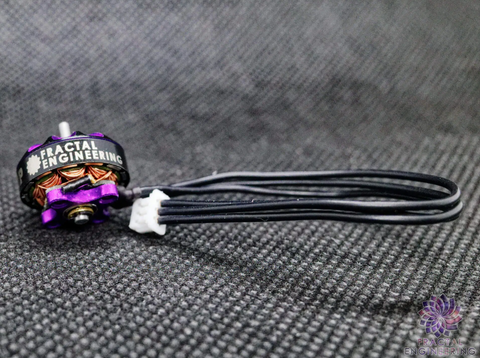

  • Extra long 90mm wires for Wingman foldable arms build

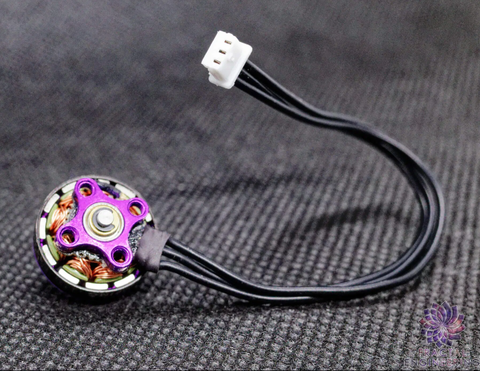

  • PCB collector plate for easy maintenance

Specifications

  • KV11500
  • 1S only
  • Dimension(Dia.*Len):15mm*15mm
  • Inner Shaft Diameter: 2mm
  • Outer Shaft Diameter: 1.5mm
  • Configuration: 9N12P
  • Weight(g): 4.63g

Includes

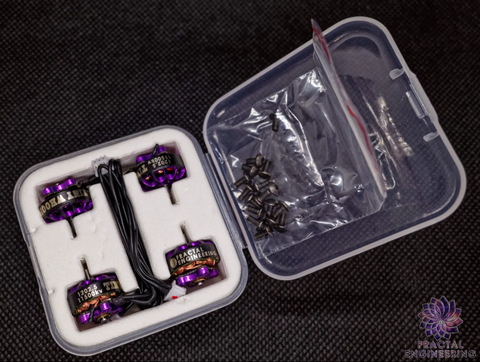

  • 1 (or 4)  x 1202.5 Brushless Motor
  • 5x M2x4mm Screw
