Features:
AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
Extreme light 1S 65mm Brushless whoop only 20g
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Camera Angle adjustable
Specifications:
Brand Name: Happymodel
Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*37mm

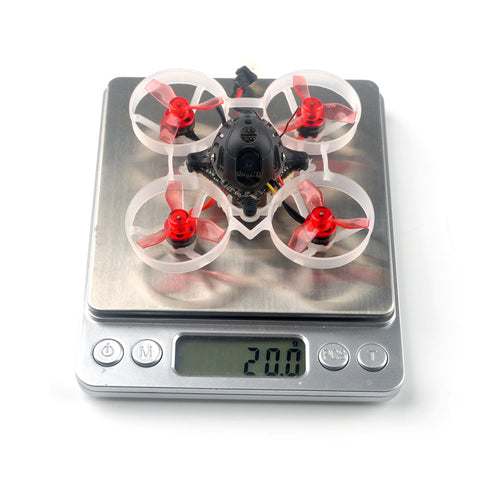

Net weight: 20g(without battery)
Takeoff weight: 28g
Receiver option:
Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
Motor speed option:
SE0802 KV25000(Race Edition)
Package includes:
| Item Name | Qty |
| Mobula6 1S 65mm whoop Drone Frame | 1 |
| SPI Receiver Option1: Crazybee F4 Lite FC built-in Frsky SPI D8 RX | 1 |
| SPI Receiver Option2: Crazybee F4 Lite FC built-in Flysky SPI RX | |
| SPI Receiver Option3: CrazybeeX DXS V1.0 FC built-in DSM2/DSMX SPI RX | |
| SE0802 KV19000 or KV25000 brushless motor | 4 |
| Gemfan 1219-3 Propellers(4cw+4ccw) | 1 |
| Runcam Nano3 1/3 CMOS 800TVL camera | 1 |
| 5.8G 25mw 40ch vtx (Flight controller built-in) | 1 |
| 1S 300mah 30C LiHV Battery | 4 |
| 1S Lipo/LIHV USB Charger | 1 |
| Propeller disassemble tool | 1 |
Spare parts specifications:
| Motor | Mode: SE0802 19000KV or KV25000 Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm Weight(g):1.9g No.of Cells(Lipo):1S only |
| Propellers | Gemfan 1219-3 Center Thickness:5mm Prop Disk Diameter:31mm Center Hole Inner diameter:1.0mm Weight:0.28g |
| CrazybeeF4 Lite v3.1 (updated since 17th Feb 2022) | (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR (Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS (DSM2/X SPI RX version) CRAZYBEEX DXS DSM2/X version firmware target: CrazybeeF4DXS MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: ICM20689(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Frsky/Flysky version Factory firmware: O_H_5_REV16_7.HEX DSM2/DSMX version Factory firmware:S_H_50_REV16_8.HEX Default protocol: DSHOT600 |
| Onboard Frsky SPI D8 receiver Version | SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 modelChannels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m |
| Onboard Flysky SPI receiver Version | SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe support |
| Onboard DSM2/DSMX SPI receiver Version | SPI BUS receiver DSM2/DSMX compatible Channels: Max 12ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m RSSI enable(show on the goggles) |
| Onboard 5.8g VTX (Openvtx) | Output power: 0mw~400mw Frequency: 48CH Input voltage: 3.3V~5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 48 channels With Race band Smartaudio ready |
| Runcam Nano3 | Model: RunCam Nano 3 Image Sensor: 1/3″ CMOS Horizontal Resolution: 800TVL Lens : 2.3mm(M6.5) FOV 140° Signal System: NTSC S/N Ratio: >50dBElectronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm |
