We at Tinywhoop are excited to bring you this new 6 port 1S battery charger from BETA FPV. This charger supports PH2.0 and BT2.0 at the same time! Compact, fast-charging, and portable, choosing a 1S battery charger that best suits your needs will no longer be difficult with this 6 Ports 1S charger & adapter.
SPECIFICATIONS
-
- Item: 6 Ports 1S Battery Charger & Adapter
- Input connector: Type-C
- Input voltage range: 5-12V
- Max input power: 30W
- Max input current: 2.5A
- Max charging current: 1A (Single-port)
- Support battery connector: BT2.0&PH2.0
- Charging protocol：PD3.0/QC3.0 (5V/9V/12V) /BC1.2
- Battery Type： LiHV 4.35V
- Dimensions：79*46*19mm
- With BT2.0/PH2.0 two types of battery ports, the charger allows charging BT2.0 and PH2.0 batteries at the same time.
- By supporting multi-charging protocols including PD3.0/QC3.0/BC1.2, every port's charging current can reach 1A, which makes charging faster.
- This portable 30W Type-C power adapter offers fast, efficient charging at home, or on the go.
- The power adapter is compatible with any USB‑C-enabled device, you can also pair it with other devices to take advantage of the fast-charging feature.

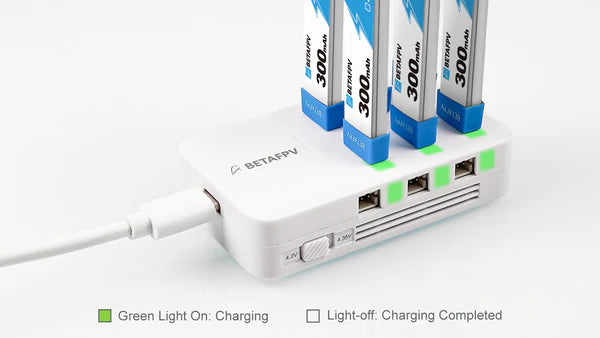

The 30W power adapter supports multi-charging protocols including PD3.0 /QC3.0/ BC1.2, equipped with 6 ports 1S battery charger with a maximum charging current of 1A, which makes charging faster. 6 BT2.0 300mAh 1S batteries can be fully charged in about 25 minutes.
Button Function
The function of the button is to switch the charge voltage: 4.35V.

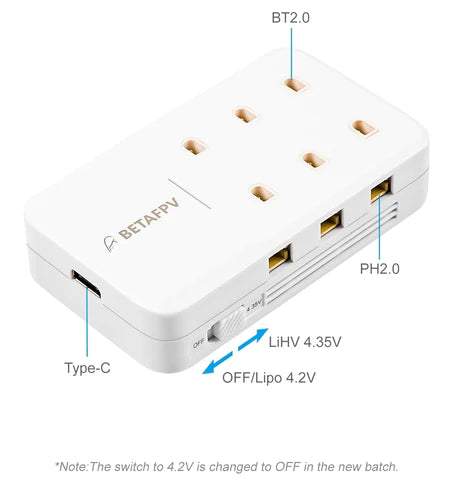

The new batches' switch left side changes the "4.2V" to "OFF". See the picture above.
