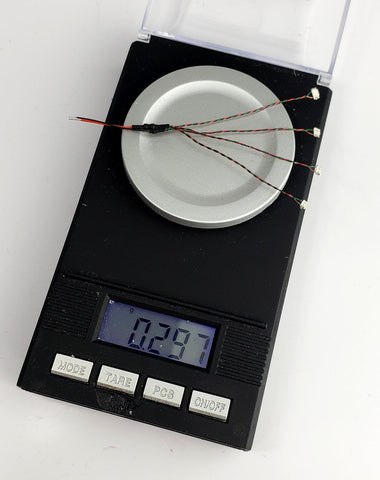

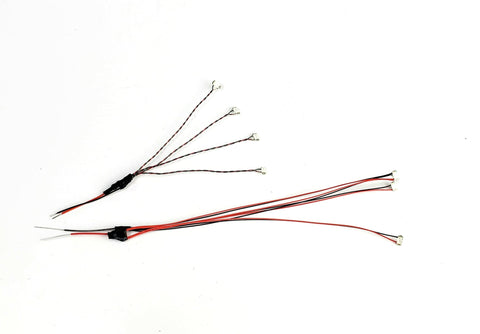

We shortened up the leads on these 1206 LEDs for those that want to spruce up their canopy without having to hide all the extra wire length. If you want to put these on your whoops I'd recommend using the non-shorty version. These shorties come in at a whopping 0.3 grams!

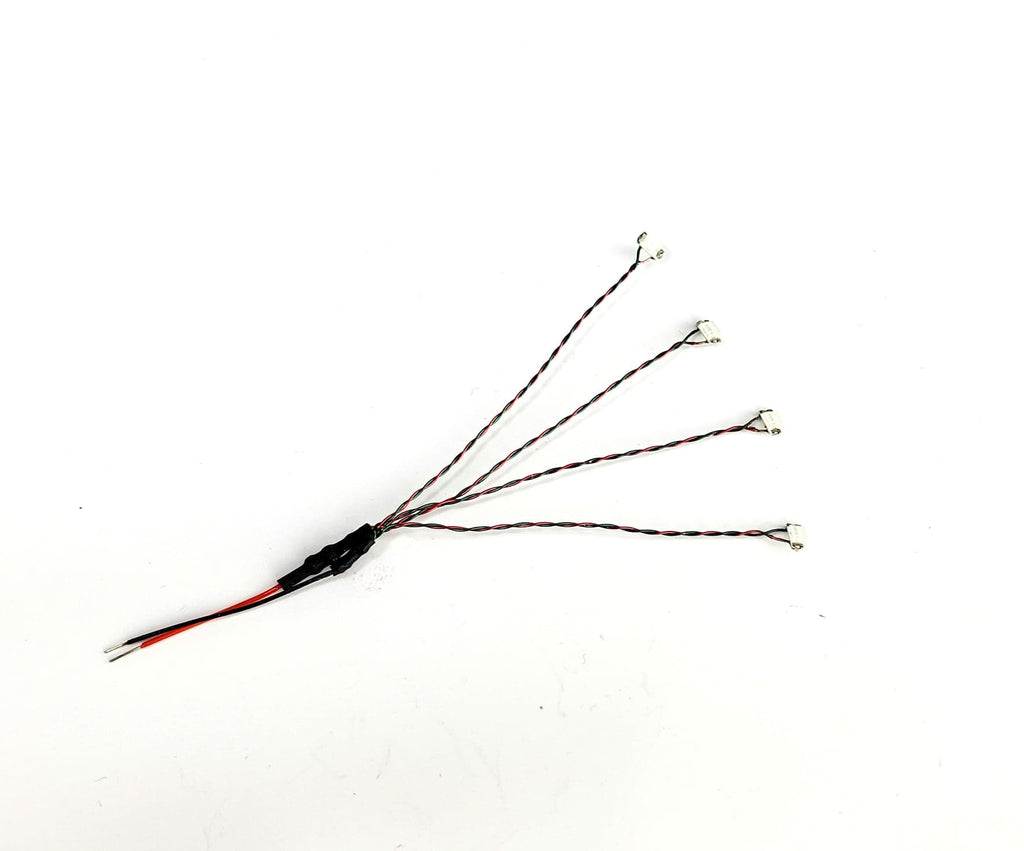

The 4-LED harness is by far the easiest way to add 4 tiny superbright LEDs to your Tiny Whoop!
With the ultra-light built in resistor, you can solder these 4 (1.2x0.6mm) LEDs to your whoop by connecting one positive and one negative wire directly to the (1S) main power (where your battery pigtail and your camera are soldered to the main board). Then it's just a matter of using some Welder glue to attach the LED to the frame. Directions below!
I've installed a TON of these LEDs and this is the easiest way to reliably install them:
I smear a tiny amount of Welder Glue on the back of the LED and a tiny amount on the frame or canopy where I want the LED to be. Then I wait about 60 seconds while the Welder gets super tacky. I then lightly place the LED to the frame and use scotch tape to hold it there by wrapping the tape around the duct or canopy. It'll dry faster if the tape is holding the LED in place but not blocking all airflow to the glue. After a few hours the tape can be gently pulled away. I usually add a little more Welder at this point, smearing it along wherever the wires are run. Now your LEDs are pretty much never going to come off, and they'll withstand any crash.
Here's a shot of me using tape to hold the LED in place while Welder dries:
BE CAREFUL if you're installing these lets on carbon fiber or electronic components. There is an area on the back where the positive and negative could bridge against something conductive. If you're worried about it, just let some Welder dry on the back of each LED and on any silver-colored wire.
