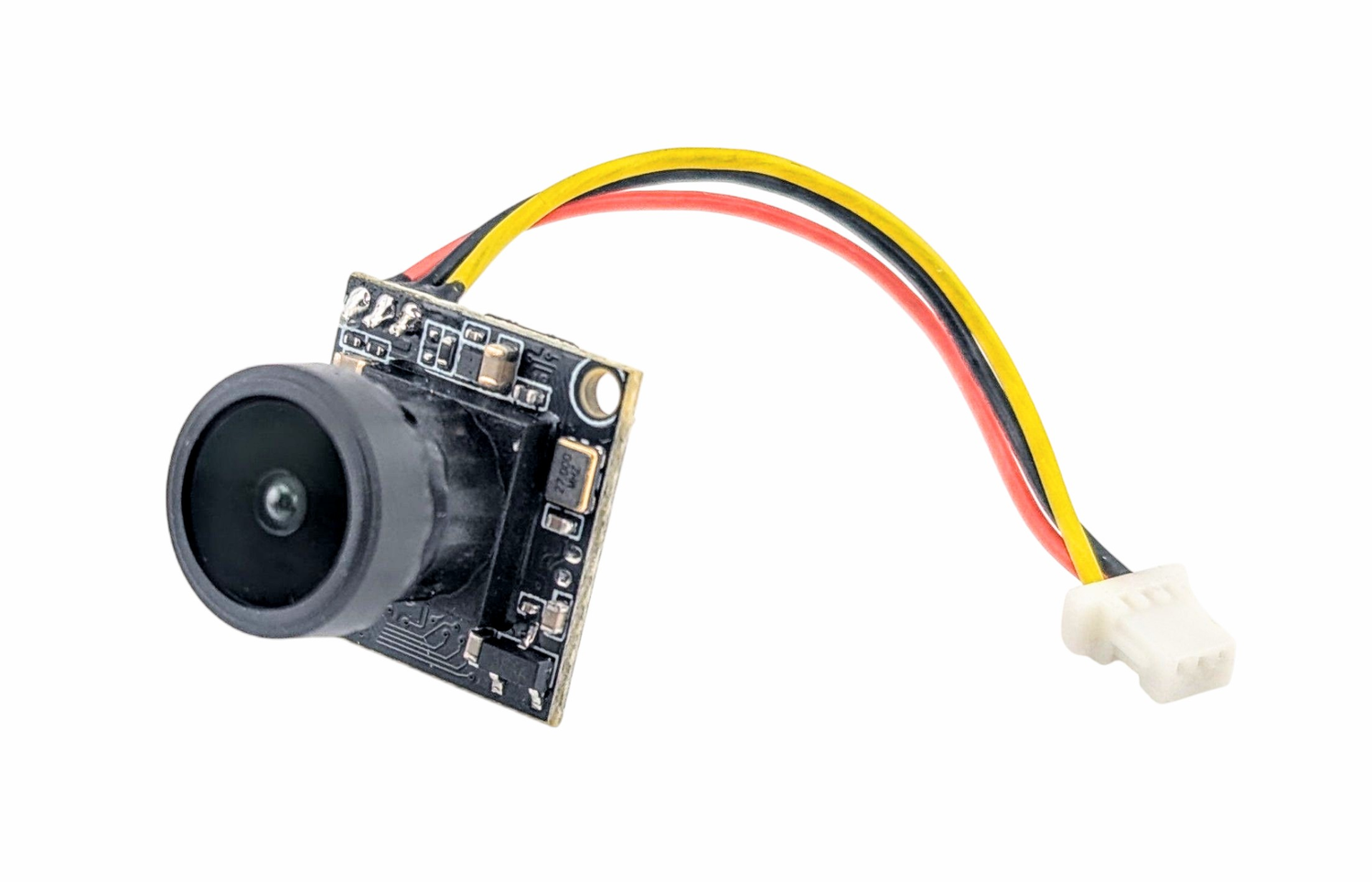

Nano 5 Camera

This is the camera used on the 2025 release of the Mobula6 2024 V3, one of the most significant upgrades. This camera weighs in at 1.57g and boasts 1200TVL and an ultra-wide 155° FOV.

Here are the stats from Happymodel:

Image Sensor: 1/3" CMOS
Horizontal Resolution: 1200 TVL
Lens: 2.1mm (M10) 155° FOV
TV System: NTSC
Signal-to-Noise Ratio: >52dB
Electronic Shutter: Auto
Automatic Gain Control (AGC): Auto
Minimum Illumination: 0.001Lux@1.2F
Digital Wide Dynamic Range: Auto
Power Supply: DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
House Material: ABS
Net Weight: 1.57g (1.0mm plug version)

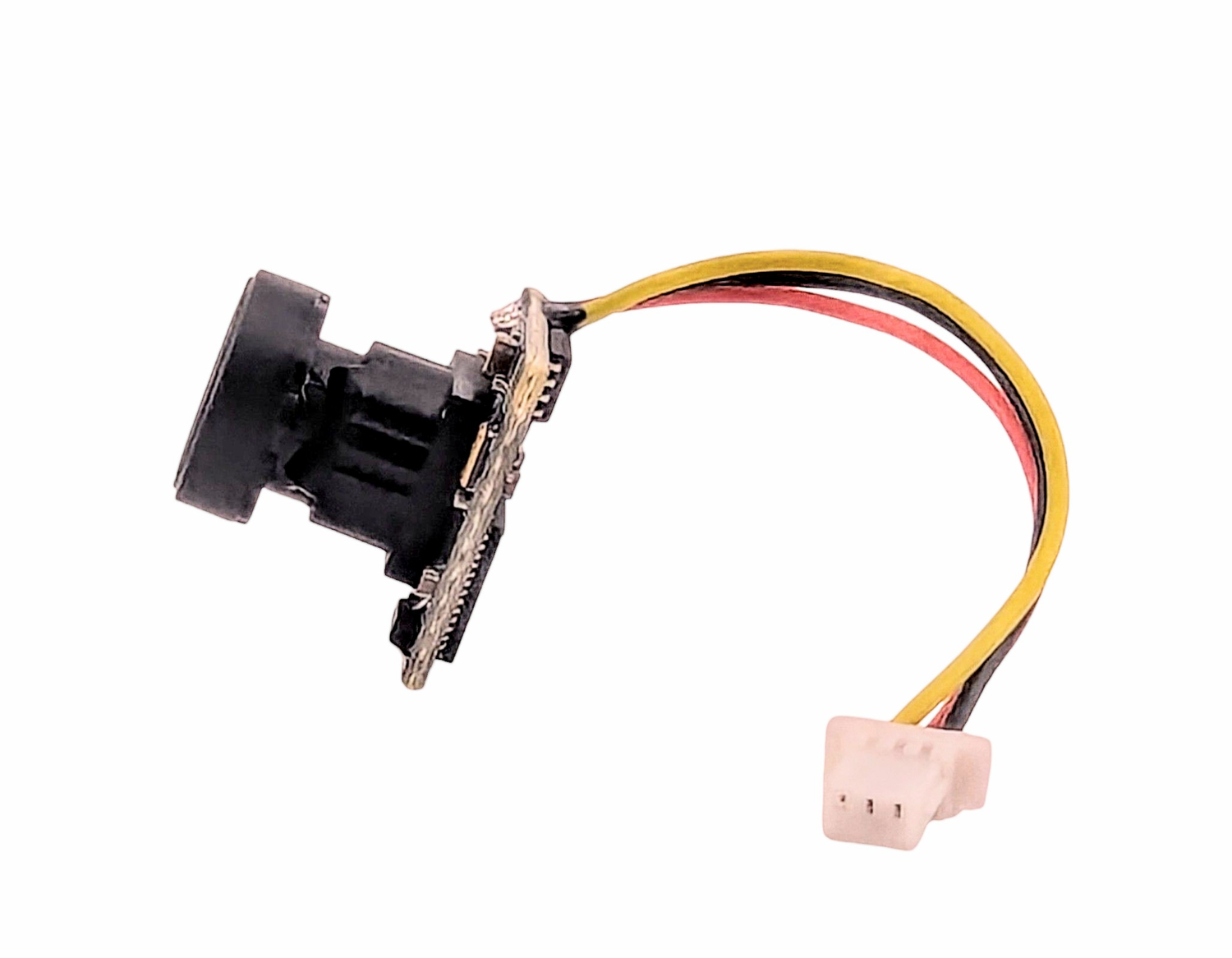

Here's a closeup of the plug this baby uses!
