Introduce the World first true diversity 2.4 GHz ExpressLRS Rx with RF amps

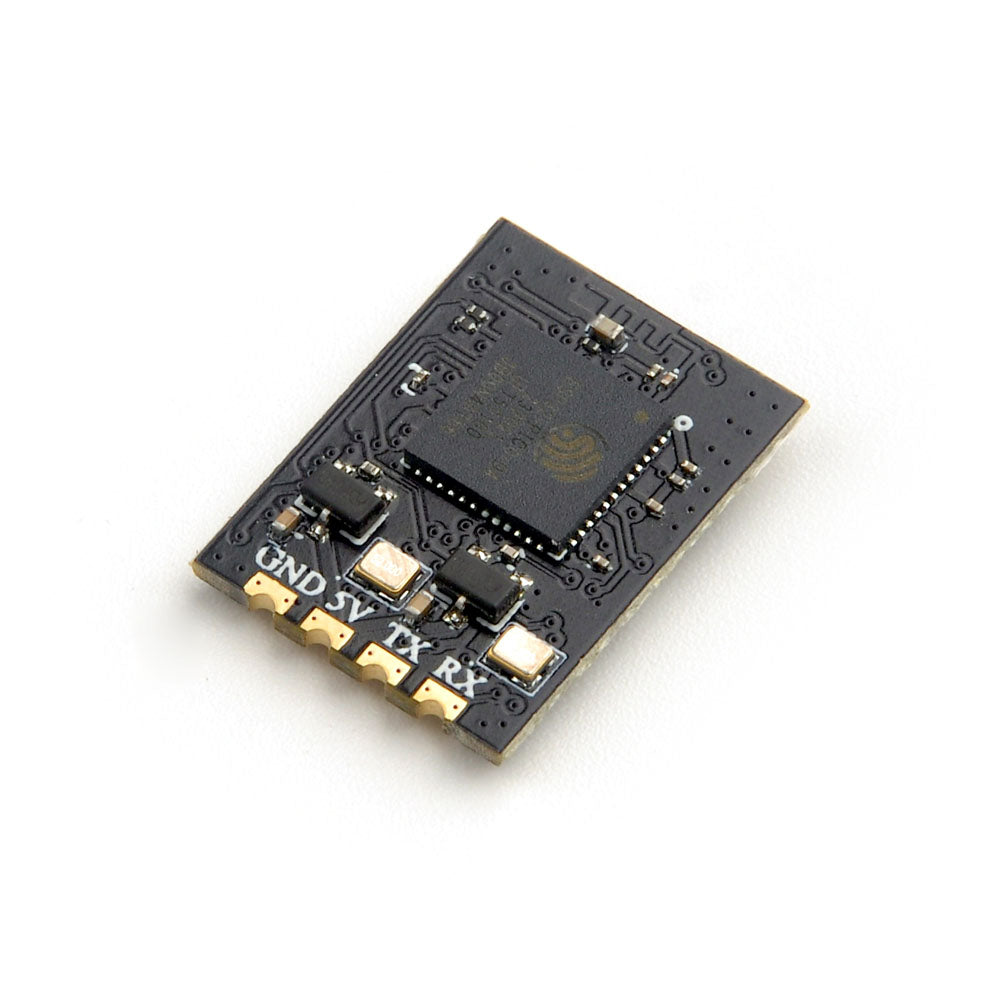

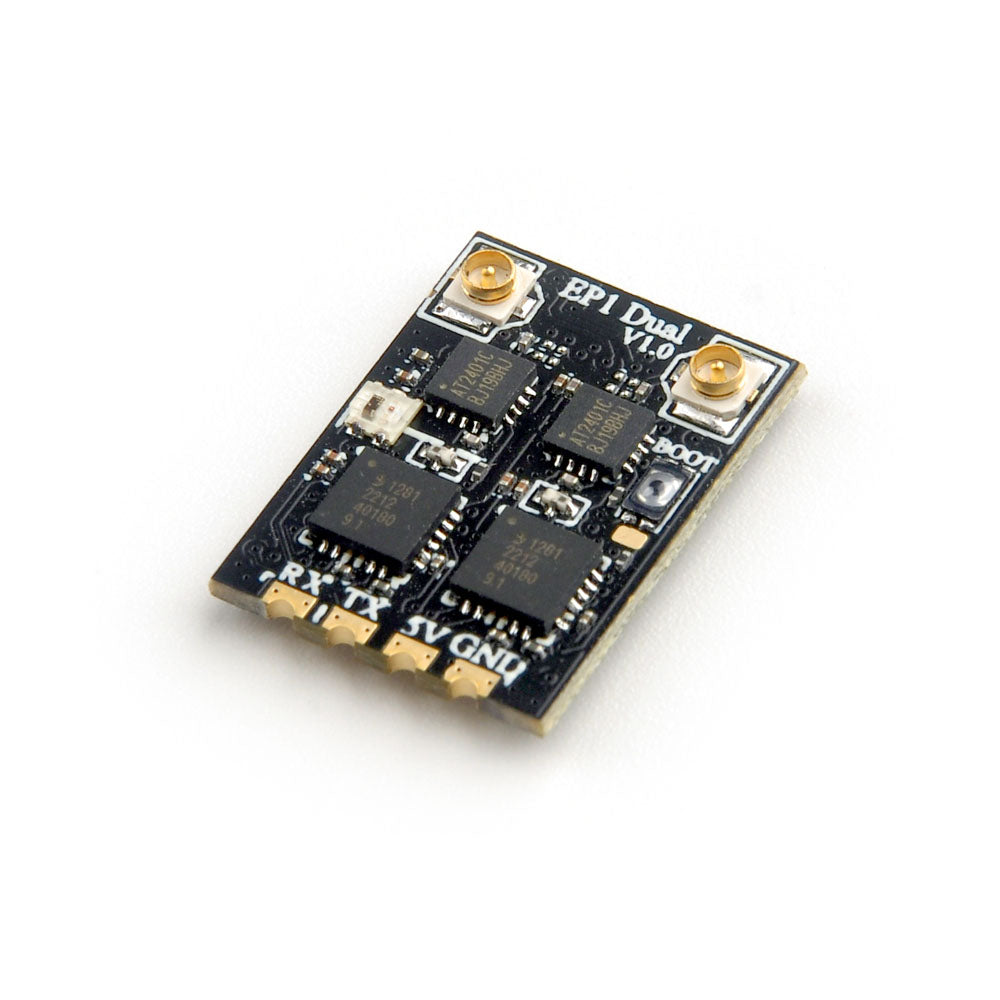

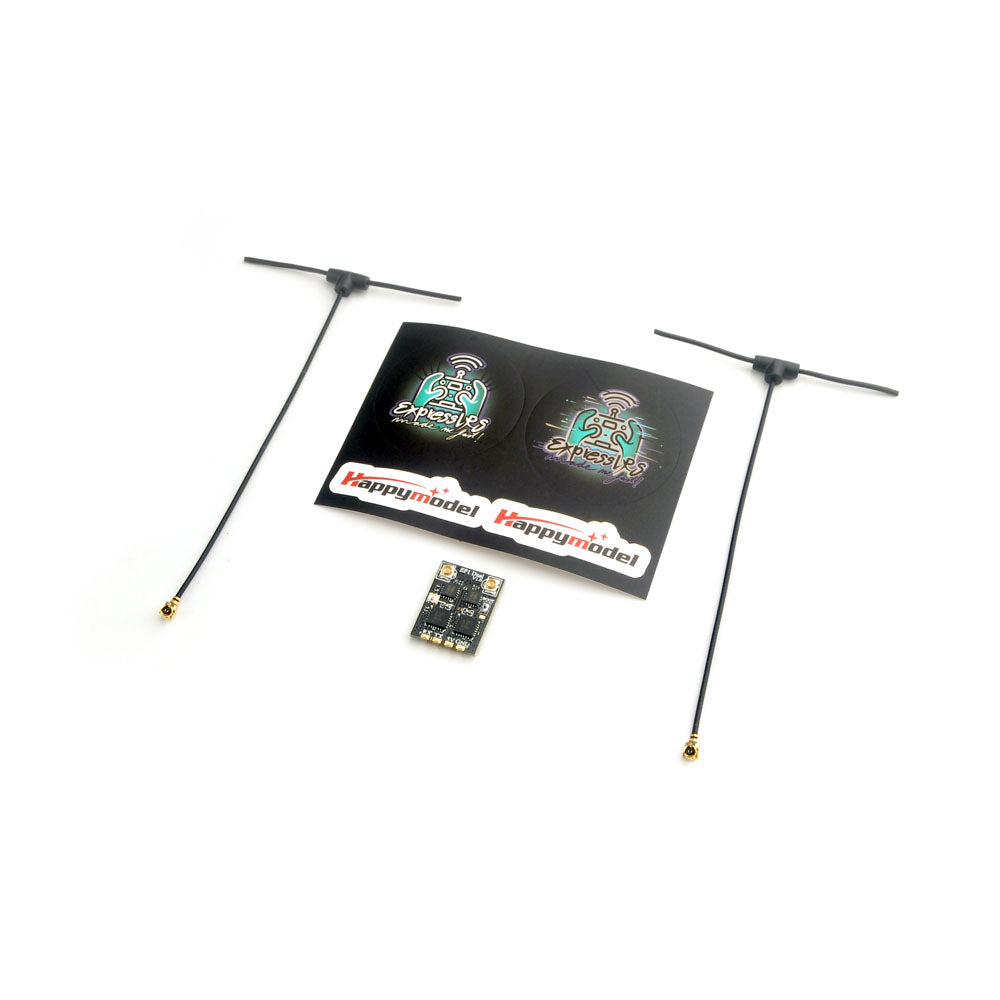

Item: Happymodel EP1 Dual receiver true diversity 2.4Ghz ExpressLRS RX
ESP32 PICO D4, dual SX1280(SX1281)
Antenna connector: IPEX MHF 1/U.FL
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: >19dbm
Receiver protocol: CRSF
Input voltage: +5V DC @ “+” pad
PCB size: 19mm x 14mm

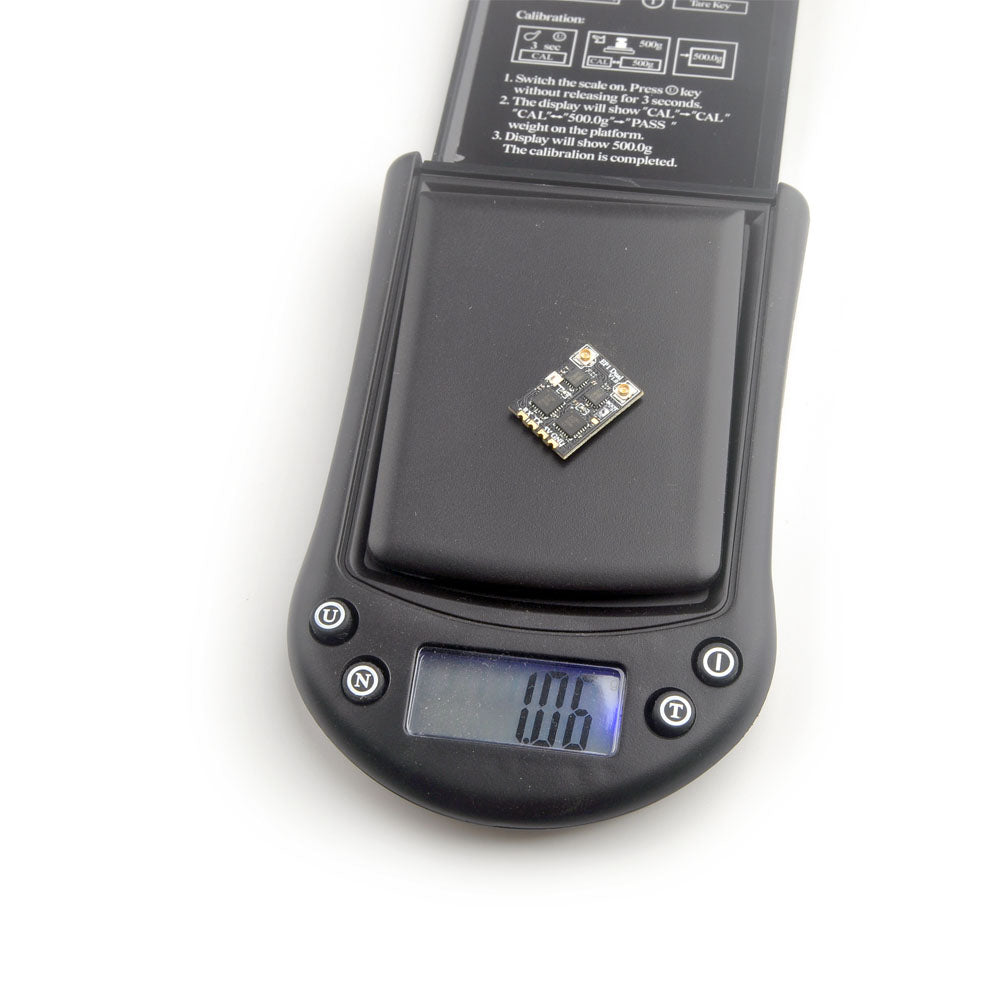

Weight: 1gram exclude antenna
Firmware:
ExpressLRS v3.0.0 rc1 or latest version
Target: Unified_ESP32_2400_RX, Append configuration -Generic ESP32 2.4Ghz Diversity RX
(EP1 Dual target will be available soon)
Firmware update via UART or WIFI
