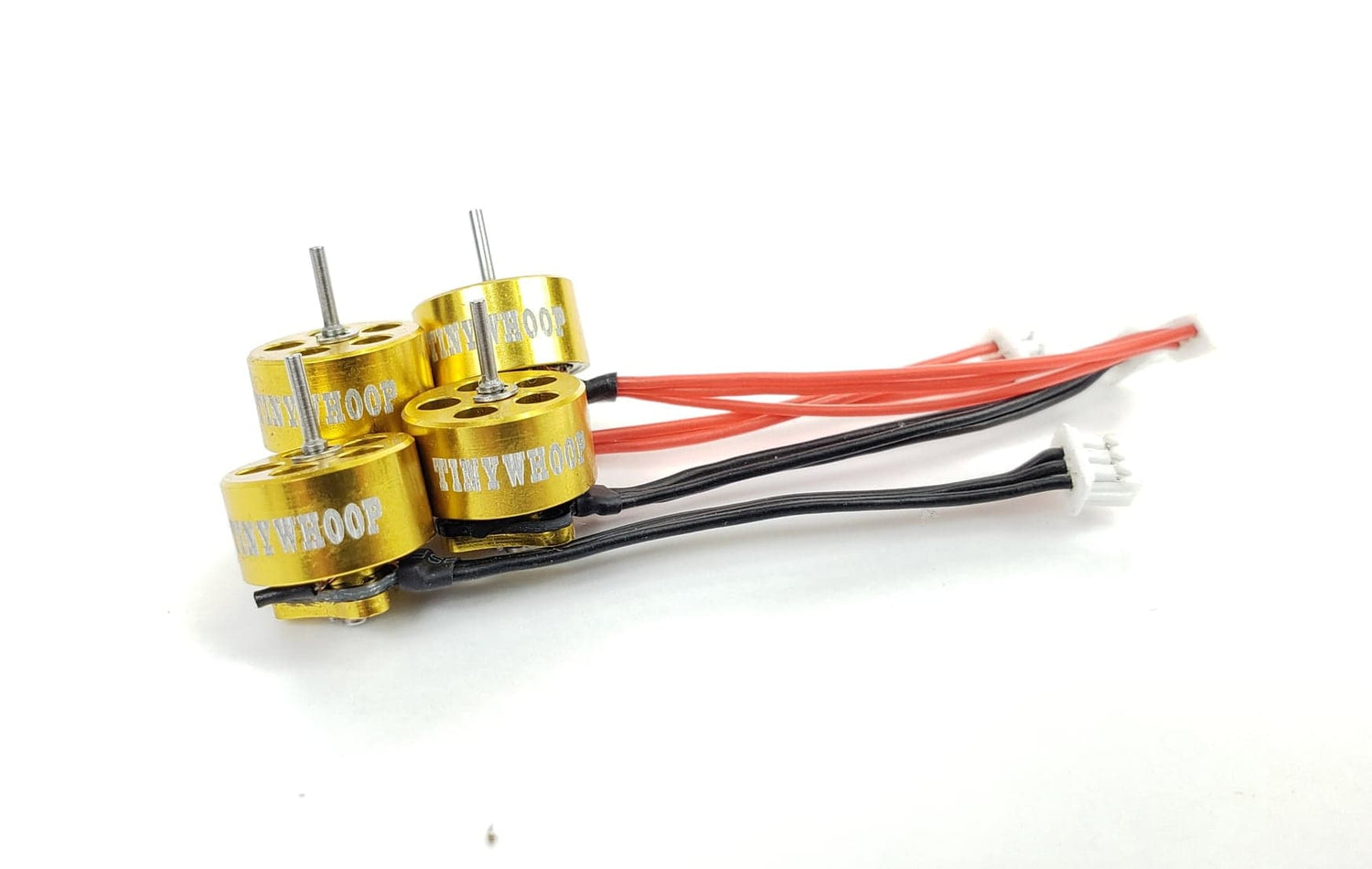

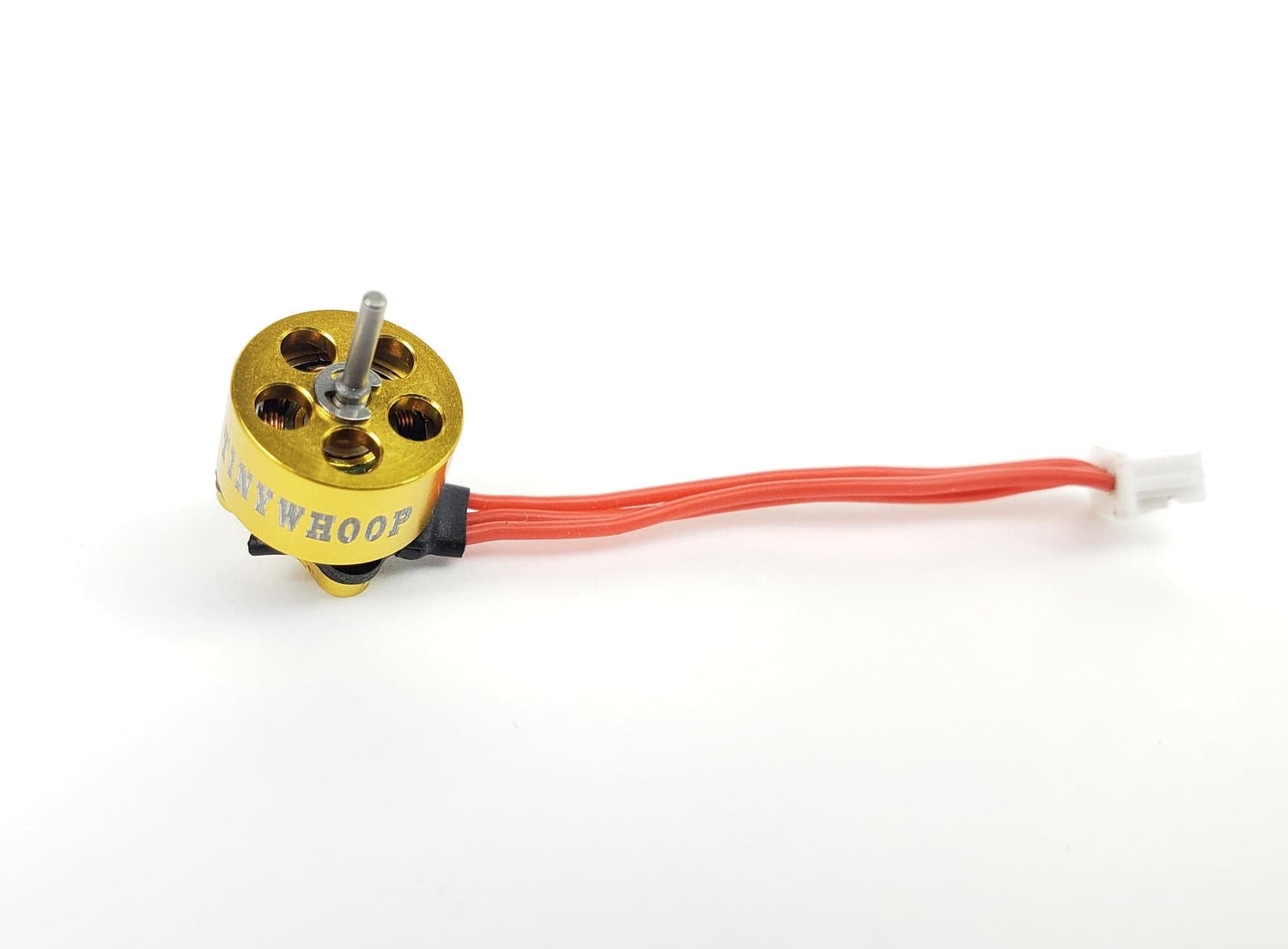

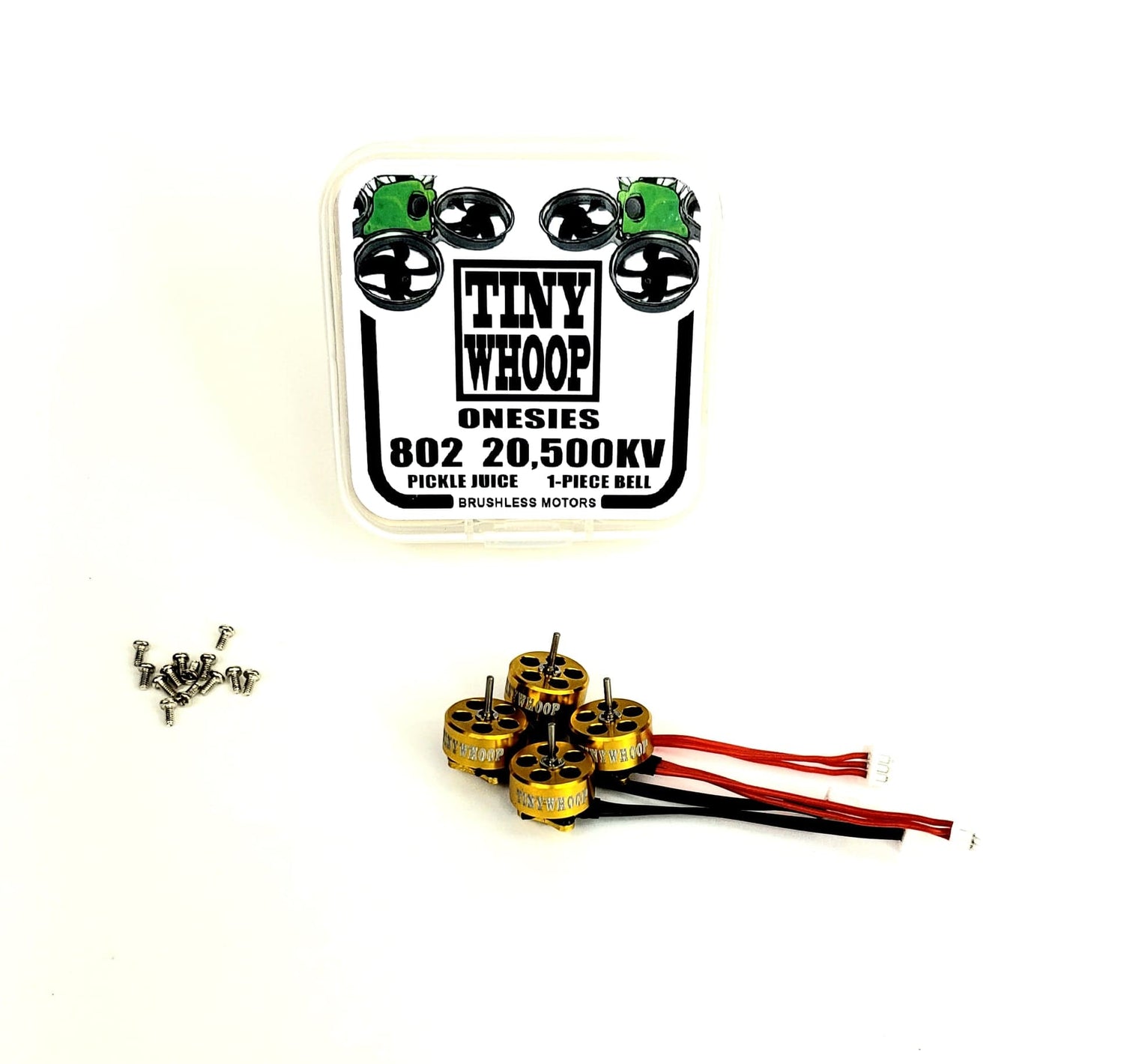

After repeated requests from the community for an 802 motor speed between the Boost Juice 19,000kv and the Double Deuce Juice 22,000kv, we're proud to announce 802 20,500kv Pickle Juice brushless motors!
These motors are perfect for those that want a little more punch than 19000kv but a little more throttle resolution than the 22000kv motors. We almost called them the sweet spot motors. They've also got a little more effeciency than the 22000kv motors in the low to mid-throttle range.
Introducing Tiny Whoop Onesies!
Tiny Whoop Onesies are the latest evolution in micro brushless motors! This new design was created to maximize durability. I know it sounds pretty cheesy but this new design is truly revolutionary.
Until now nearly all micro brushless motors were made with the bell in two pieces: the top (which is made of aluminium) and the cylindrical iron sides of the bell, which were both glued and press-fit together. Because this original design was not meant for Tiny Whoop style flight, it was susceptible to pulling apart, rendering the motors largely unusable. I found this happening especially if your aircraft was ‘ground-pounding’ or flying a racecourse that uses a slide or other touch-and-go elements.
Tiny Whoop Onesies have a single piece of aluminum that encases the entire bell, and in all my extensive tests, I have never been able to separate it as nearly all of its predecessors are would have.
This is pretty much the last piece of the puzzle when it comes to the Tiny Whoop Recipe and extreme durability. For a time now we have had access to extremely durable frames, props that seldom break, the best batteries in the world, and reliable flight controllers. Extremely reliable, durable motors are the last piece of the puzzle.
PCB Solder Pads
Like all of our brushless motors, these babies now feature the PCB Solder pad upgrade, which allows for custom wiring and easy repairs. To access the PCB pads (where the wires connect to the motor) just peel back the black silicone.
These motors have a 1mm shaft size.
