BetaFPV VR02 Goggles

  • Sale
  • $39.99


The VR02 goggles is a great beginner goggles set that has helped a lot of pilots experiment with FPV without spending 500 bucks on a set of goggles. Lots of pilots end up upgrading to a pair of expensive goggles later but begin with a set of 'box goggles' like these babies.

Here's what BETAFPV has to say about em:

VR02 FPV Goggles - the First-Person-View Goggle with more simpler operation and powerful function, is specially designed for FPV starters.





Bullet Point

  • With the built-in antennas and structure patented design, the VR02 Goggles is more compact and exquisite, less than 300g lightweight is more comfortable for wearing and carrying.
  • VR02 goggle comes with built-in 5.8G 14DBI high-quality antennas, you can receive stable and clear images even for long-range flights.
  • With 4.3 inches 800*480px HD high brightness LCD, VR02 Goggles will show you a bright world without warped and blurred images, which is specially tuned for FPV racing or Model airplanes.
  • Upgraded the frequency sweep function and the fast frequency auto-search function(only 2.5 seconds), pilots can easily find a band and channel with a stronger signal for a better flight experience.
  • The advanced auto-searching function will show you the working frequency on the screen vividly.

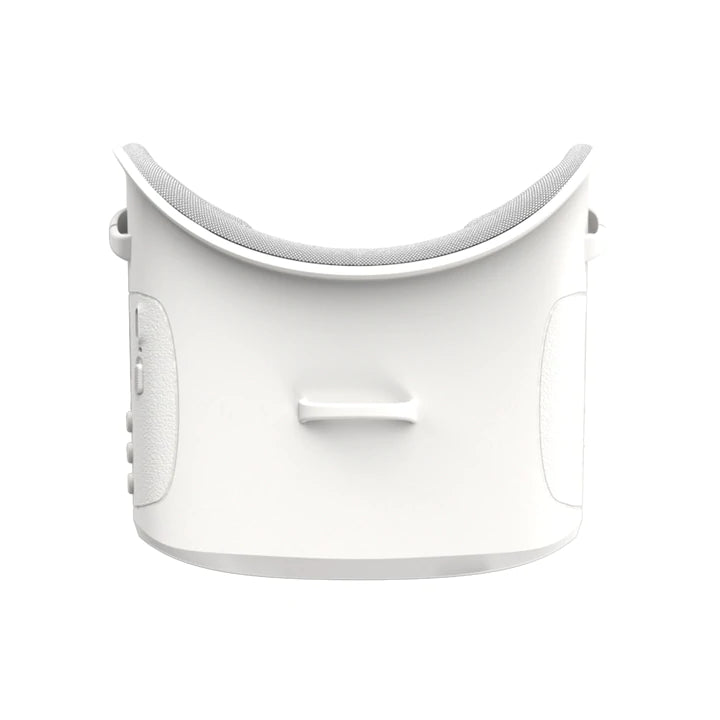

  • Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.



Part

Specification

BODY
  • Dimension: 126x143x86.3mm
  • Weight: 300g with 2hr 2000mAh battery
  • Belt: Three-Ways adjustable belt
SCREEN
  • screen size: 4.3 inch
  • Screen resolution: 800*480 px
  • Screen brightness: 300cd/m2
  • View Angle: 55°
JACK
  • Type-C Charging
  • Voltage: 3.7V, the device operating current of 500mA@3.7V
  • Current: 500mA
BATTERY
  • Built-in 3.7V/2000mAh high-capacity polymer battery, LED turn on while charging. When charging is completed, the LED will turn off.
  • Each full charge revive is around 2 hours working time

BETAFPV Patented Design

With the built-in antennas and the special design of the Goggles lens, the VR02 Goggles is more compact and exquisite, which makes it maintains a small and lightweight body.

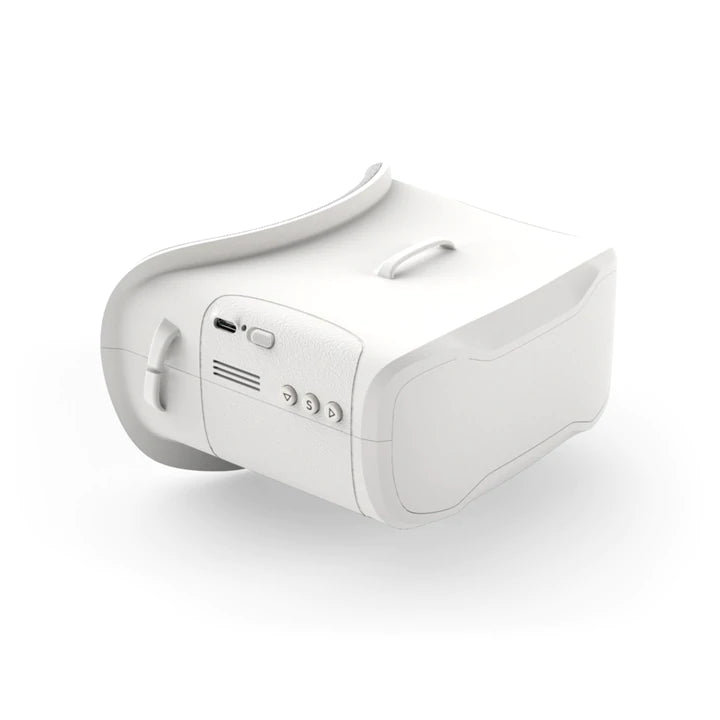

Operation Instructions

Button  Instruction
Power On/Off
  • Flick to the left to turn off, and to the right to turn on, the screen will light up after a normal boot.
Band+
  • Short press for Band+ option A, B, E, F, R, L cycle selection.
Search
  • After powering on, short press the "S" button to enter the sweeping interface. Press and hold the "S" button for 1 second to start the frequency auto-search.
CH+
  • Short press for CH 1~8 cycles.

Band and Channel Selection

  CH
CH 1
(MHZ)
CH 2
(MHZ)
CH 3
(MHZ)
CH 4
(MHZ)
CH 5
(MHZ)
CH 6
(MHZ)
CH 7
(MHZ)
CH 8
(MHZ)
GROUP
A
5865
5845
5825
5805
5785
5765
5745
5725
B
5733
5752
5771
5790
5809
5828
5847
5866
E
5705
5685
5665
5645
5885
5905
5925
5945
F
5740
5760
5780
5800
5820
5840
5860
5880
R
5658
5695
5732
5769
5806
5843
5880
5917
L 5362 5399 5436 5473 5510 5547 5584 5621
  • BETAFPV VR02 FPV Goggles has a frequency sweep function and a fast frequency auto-search function, it will help pilots find a stronger Band to get a better flight experience.
  • The frequency sweep function can display the occupancy status of each channel in the current space so that pilots can fly with a better Band and enhance the flight experience.

How to use the frequency sweep function?

After powering on, short press the "S" button to enter the sweeping interface, as shown below. Pilots can change the Band via the "Band+" and "Ch+" buttons.

Band Status Indicator

Green 0<RSSI<20, not occupied
Yellow 20<RSSI<70, there is a drone occupying the Band far away, or there is interference
Red 70<RSSI<99, occupied
White current Band (highest RSSI in the sweep result)

How to use the fast frequency search function?

After powering on, press and hold the "S" button for 1 second to start the frequency auto-search. The frequency auto-search process is 2.5 seconds. After the frequency auto-search is over, it will beep twice and jump to the corresponding Band of the drone.

Package

  • 1 * BETAFPV VR02 FPV Goggles
  • 1 * Adjustable Headband
