Happymodel TCXO ExpressLRS 2.4GHz Nano Receiver - EP1

  • Sale
  • $17.99

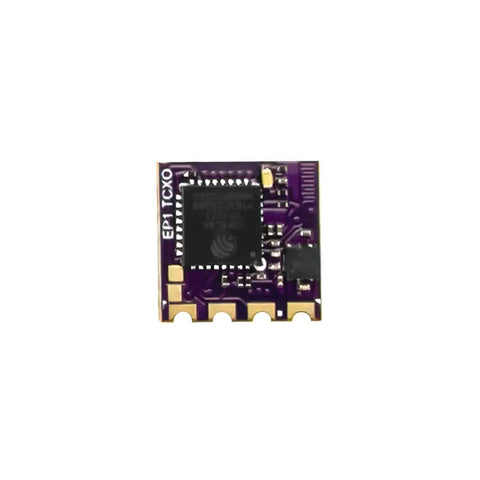

The Happymodel EP1 TCXO RX is a nano-sized true diversity 2.4GHz ELRS receiver with RF amps. This TCXO Rx receiver uses a temperature-compensated crystal oscillator to help with accurate MCU clock frequency, thus improving the performance and reliability of your RC link. Despite the small size, the low latency and high refresh rate of the ELRS system allow this receiver to be used on full-size/long-range quads, while also being small enough to be used on whoop-size quads! The Happymodel EP1 RX includes an IPEX connector for a dipole antenna, while the EP2 RX includes a built-in SMD antenna.

The EP1, EP2, and EP1 Dual modules are based on the ESP8285 MCU that allows for upgrading via WiFi, along with the SX1280(SX1281)IMLTRT RF Module.


  • Excellent performance in extreme temperatures
  • Uses a temperature-compensated crystal oscillator
  • Includes an IPEX connector for a dipole antenna
  • ESP8285 MCU
  • High-refresh-rate RF module


  • Type: ISM2.4GHz
  • ESP8285 MCU
  • SX1280(SX1281)IMLTRT RF Module
  • Omni directional antenna
  • Frequency Range: 2400 MHz to 2500 MHz
  • Receive refresh rate: 25HZ~500Hz
  • Working voltage: 5v

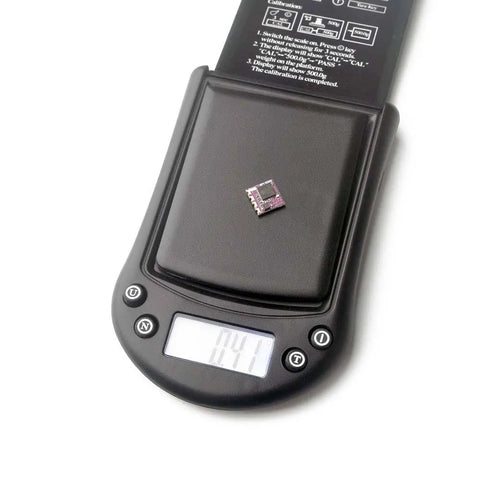

  • Weight: 0.41 gram(without antenna)
  • Dimension: 10mm*10mm*6mm
  • Peak gain: 2.23dB


  • Default Firmware out of the factory: HappyModel_EP_2400_RX V2.2 version
  • Built-in a TCXO (temperature-compensated crystal oscillator)

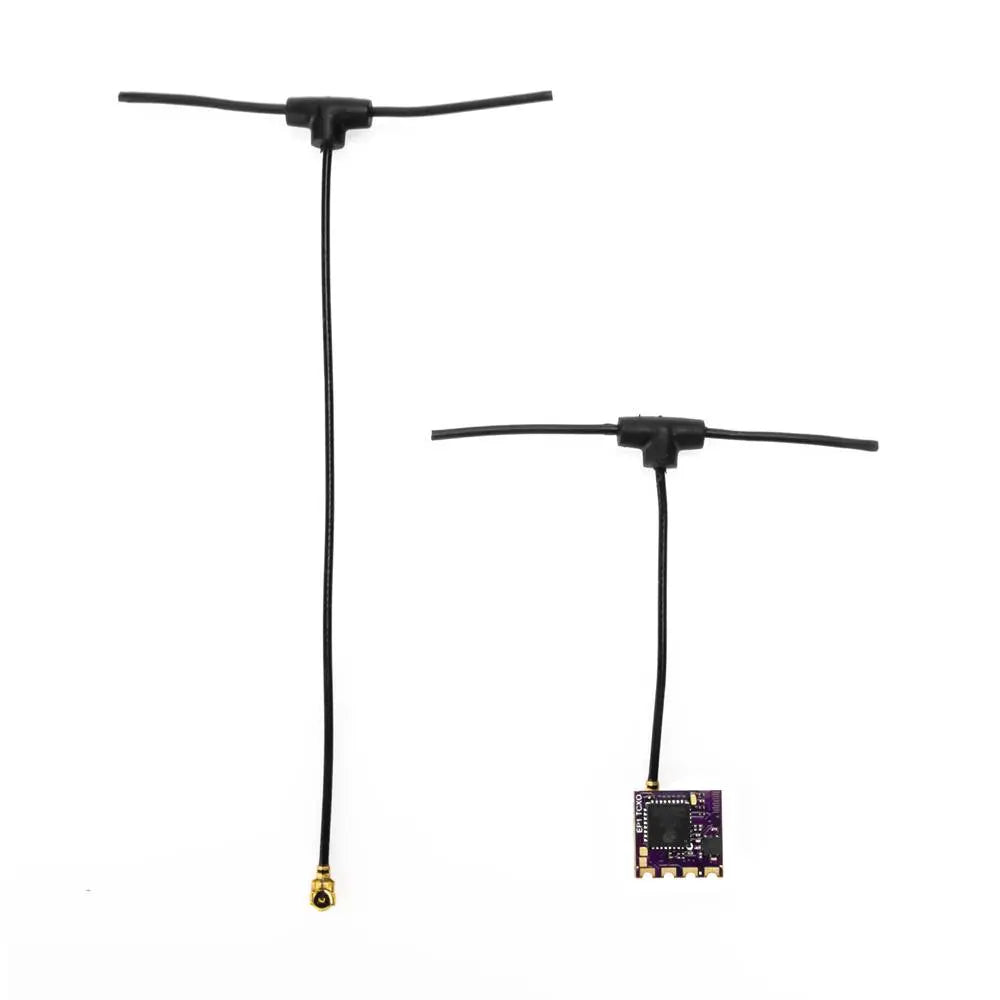

  • 1x Happymodel ExpressLRS Nano 2.4GHz EP1 TCXO RX w/ Soldered Antenna
  • 1x Antenna
