Mobula8 (Analog)

  • Sale
  • $107.00

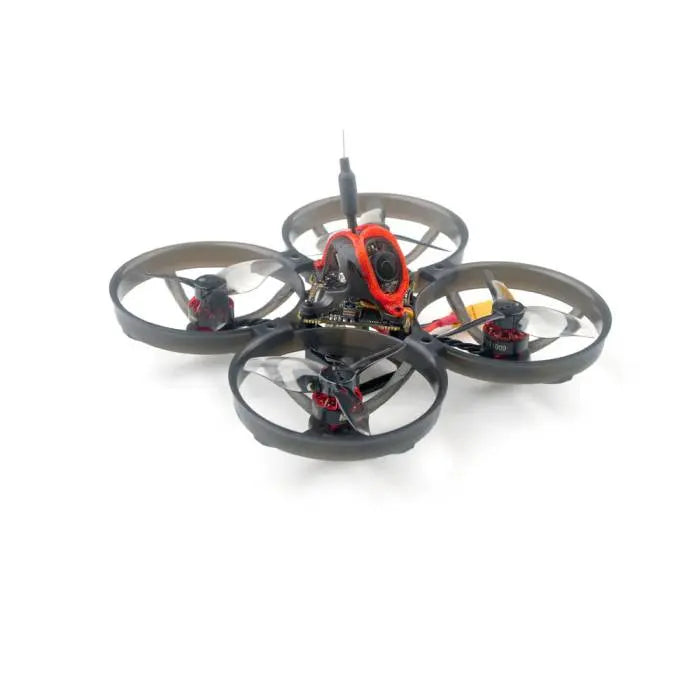

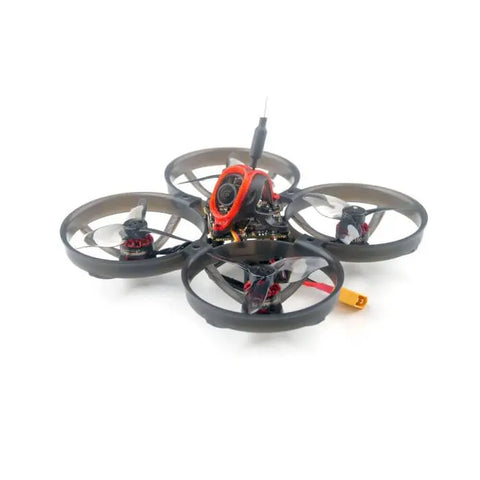

Are you tired of the power performance of the 1S whoop you own? Do you want more power to ripping and roaring in your backyard? Yes, here comes Mobula8, which is Happymodel’s first attempt on 85mm frame. It comes with an X12 series flight controller, EX1103 KV11000 motor and Gemfan Hurricane 2023 tri-blade propeller, which has excellent power performance and extremely smooth flight characteristics.

You can pick up extra propellers HERE


  • X12 AIO flight controller w/ built-in 2.4G ELRS V2.0 and OPENVTX
  • VTX Power up to 400mw
  • ELRS V2.0 (Default), provides firmware to support ELRS V3.0
  • Smooth and powerful
  • Compatible with 1S-2S Lipo/LIHV battery

Recommend 2S 450mah/550mah/650mah battery (Not included)


  • Brand Name: Happymodel
  • Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
  • Wheelbase: 85mm
  • Size: 120mm*120mm*50mm
  • X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and OPENVTX
  • VTX Power up to 400mw
  • ELRS V2.0 (Default), provides firmware to support ELRS V3.0
  • EX1103 KV110000 motors
  • CaddxFPV Ant FPV camera

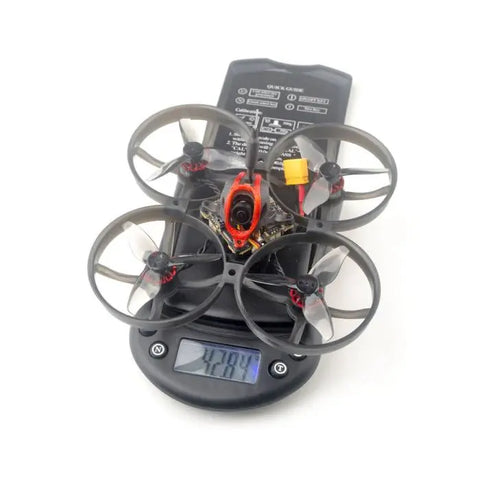

  • Weight: 43g

AIO Flight Controller

  • X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
  • X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
  • X12 PNP V1.1 flight controller without onboard receiver Target: CRAZYBEEF4DX
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: ICM20689 or ICM42688P(SPI connection)
  • Mount hole size: 25.5mm*25.5mm
  • Power supply: 1-2S battery input (DC 2.9V-8.7V)
  • Built-in 12A(each) BLHeli_S 4in1 ESC
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G OpenVTX 0mw~400mw
  • Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
  • Built-in voltage detection
  • Built-in current sensor

AIO 4-in-1 ESC

  • Power supply: 1-2S LiPo/LiPo HV
  • Current: 12A continuous peak 15A (3 seconds)
  • Support BLHeliSuite programmable
  • Firmware target: Z_H_30
  • Default protocol: DSHOT300
  • Support Bluejay firmware

Receiver option:

  • 2.4G ELRS SPI(Support ELRS v2.0, provide firmware could compatible with elrs v3.0)
  • SPI Frsky D8/D16  not compatible with EMAX E6 radio
  • PNP (without onboard receiver)
  • TBS version(with external TBS CRSF NANO RX)


  • Mode: EX1103 KV11000
  • Configuration: 9N12P
  • Stator Diameter: 11mm
  • Stator Length: 3mm
  • Shaft Diameter: Φ1.5mm
  • Motor Dimension(Dia.*Len): Φ13.5mm*15.5mm
  • Weight(g): 3.8g
  • No. of Cells(Lipo): 1-2S


  • Weight: 0.88g
  • Material: PC
  • Pitch: 2.3inch
  • Props Diameter: 52.17mm
  • Center Thickness: 5mm
  • Center Hole Diameter: 1.5mm

Caddx ANT 1200TVL Camera

  • Image Sensor: 1/3″ CMOS Sensor
  • Horizontal Resolution: 1200 TVL
  • TV System: NTSC or PAL
  • IMAGE: 16:9 or 4:3
  • Synchronization: Internal
  • Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
  • S/N Ratio : >52dB (AGC OFF)
  • Video Output: CVBS
  • Lens: 1.8mm
  • Min. Illumination: 0.001Lux@F1.2
  • Auto Gain Control: YES
  • WDR: Global WDR
  • DNR: 3D DNR
  • Dimensions: 14*14mm(with bracket to 19*19mm)
  • Wide Power Input: DC 3.7-18V
  • Weight: 2g (N.W.)

Recommended (Not Included)

  • 2S 450mah/550mah/650mah battery (Not included)


  • 1 x Happymodel Mobula8 1-2S 85mm Analog Micro FPV Whoop Drone - Chosen Receiver
  • 1 x Gemfan Hurricane 2023 tri-blade propellers (4CW+4CCW)
  • 1 x Screw Driver
  • 1 x Extra camera canopy
