Walksnail Avatar FPV VRX

  • Sale
  • $219.00


Lightweight design, ultra-thin experience

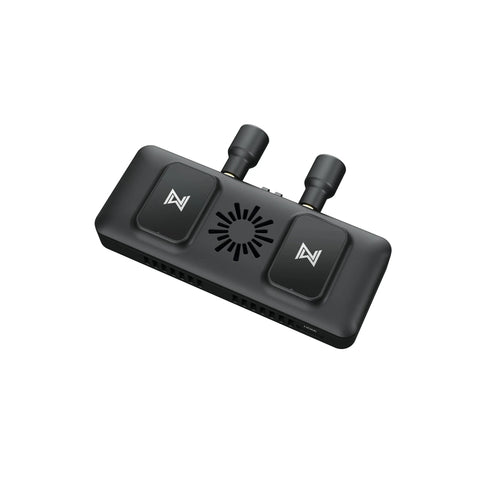

Walksnail VRX only 83g and comes with 114*55*22mm size, easy to carry.

Walksnail VRX adopts 4 antenna design, 2 directional antennas, the maximum transmission distance is 4km

1080P/60FPS
Walksnail VRX adopts industry-leading H.265 encoding technology,
which can provide a minimum delay of 22ms and a maximum resolution of 1080p.
The HD picture quality takes you to experience the fun of flying a drone.

HDMI output ensure you to enjoy uncompressed audio and video signals from the Walksnail HD system

Canvas Mode
Supports betaflight full OSD display,supports betaflight, inav, kiss full osd display
you can easily adjust the parameters you want by remote control.


Goggles Antenna
Model Red bird
Polarization LHCP
Bandwidth 5.6GHz-6.0GHZ
Average Gain 1.9dBi
Radiation Efficiency ≥97%
VSWR ≤1.3
Cross-Polar Rejection -15to-30dB
Connector RP-SMA
Dimension H24.8mm*R15.3mm
Weight 4.2g


Avatar HD VRX
Model Avatar HD VRX
CommunicationFrequency 5.725-5.850GHz
TransmitterPower(EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
I/OInterface HDMI,microSDcardslot,DC5.5*2.1mm
HDMIOutput 1080p60fps,720p100fps,720p60fps
PowerInput 7-21V(2S-5S)
SDCard Support256G
System AvatarHDsystem
Packing List
Avatar VRX ×1
RedBirdAntenna ×2
HDMICable ×1
2in1DCPowerCable ×1
