We found GEPRC's F4 12A FC and are very excited to bring you an FC that can handle 4S. This is a great platform for Toothpick class. We can't wait to see what you build! Check out our Motor Section for some Brushless Power!
Binding info at the bottom:

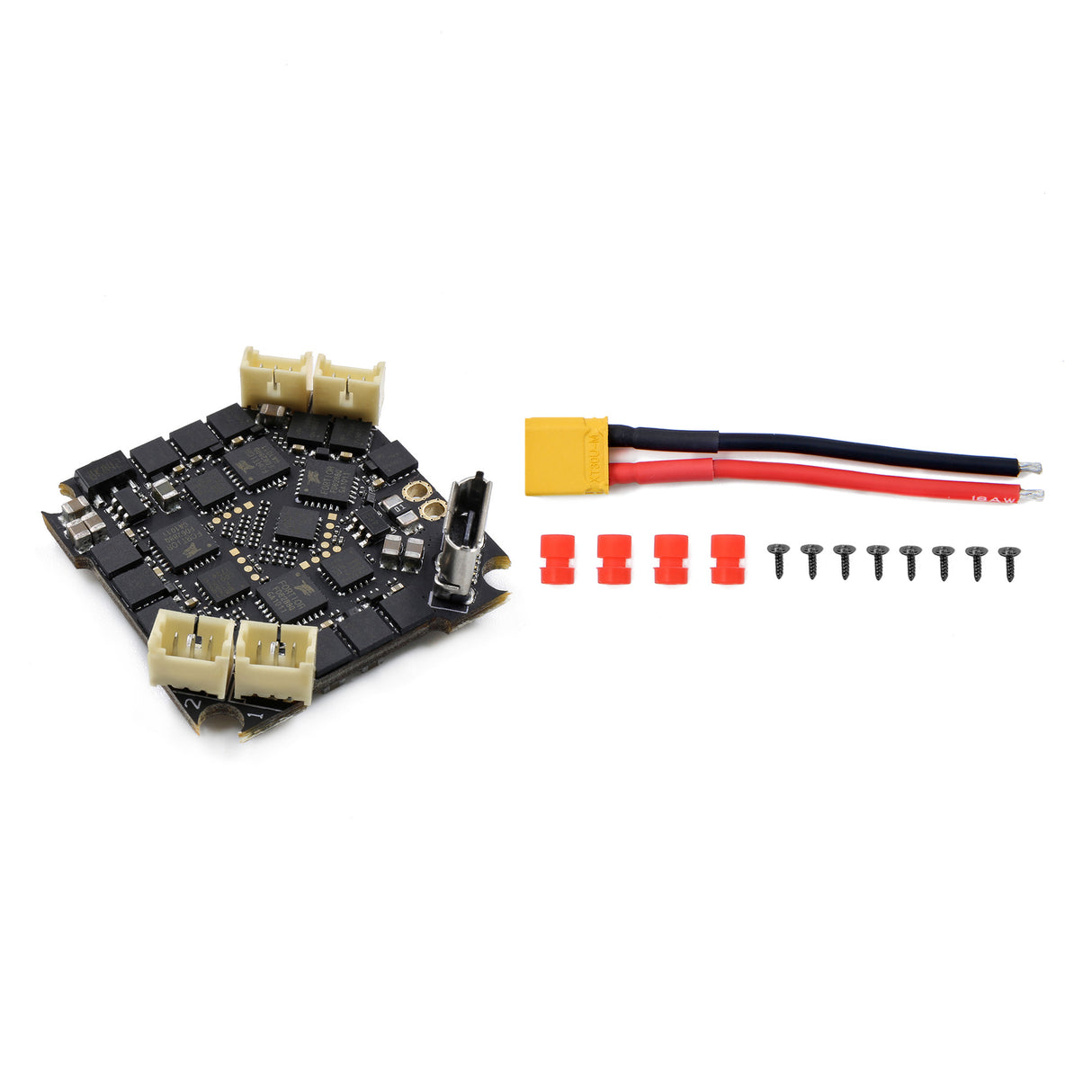

Included:
1X GEP-12A-F4
1X Power Cable
8x Screw
4X Soft Silicone
Receiver's Supported:
- Frsky XM/XM+/R-XSR
- Futaba Receiver
- DSM/DSMX
- FlySky Receiver
- TBS Crossfire Receivers
- AC900
- Most receivers that support SBUS
Spec's:
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@1A
Integrated LC Filter
Firmware target: MATEKF411
Size: 28.5x28.5mm board,25.5mm mounting holes (M2)
Installing Hole: 25.5x25.5mm, M2
ESC MCU: BB21F16G
Continuous current: 12A
Input:2-4s lipo
Supports Dshot600, Oneshot, Multishot
Current meter: 210
Target: G_H_30
Features:
BLheli_S 12A ESC GEP-12A-F4 the largest support 4S Lipo battery, with Current meter
Silica gel shock absorption, solve the problem of vibration
F411 Flight Controller
MPU6000 Gyro
Include Buzzer pad
weight: 5.6g
