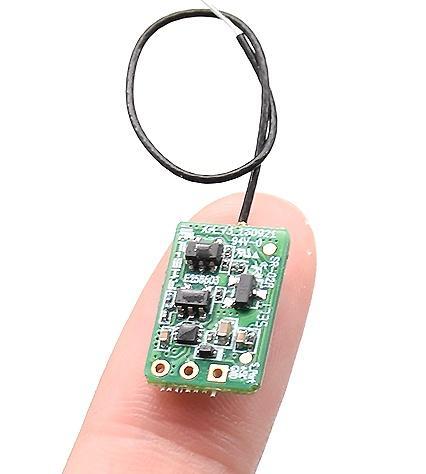

FrSky Ultra Light XM Receiver

  • Sale
  • $14.00


The FrSky XM is our go-to receiver for the AlienWhoop F4 V2.1 and Alien Whoop ZER0. It supports up to 16 channels, RSSI, and is generally perfect for brushed micros.

Best applications:

Alien Whoop ZER0 Brushed Flight Controller

Alien Whoop V2.1 F4 Brushed Flight Controller

Paired With: Tiny X8 FrSky Radio

SPECIFICATION

  • Number of Channels: Up to 16CH from SBUS(CH1~CH15 for PWM, CH16 RSSI for FC
  • Operating Voltage Range:3.5~10V
  • Operating Current:20mA@5V
  • Operating Range:>600m
  • With RSSI output on board: Analog 0~3.3V
  • Firmware Upgradeable
  • Compatibility:FrSky D16 mode
  • Dimension:15x10x3.5mm(LxWxH)
  • Weight:1g

Note: wire and heat shrink tubing not included

Alien Whoop ZER0 connection:

Alien Whoop v2.1 connection:
