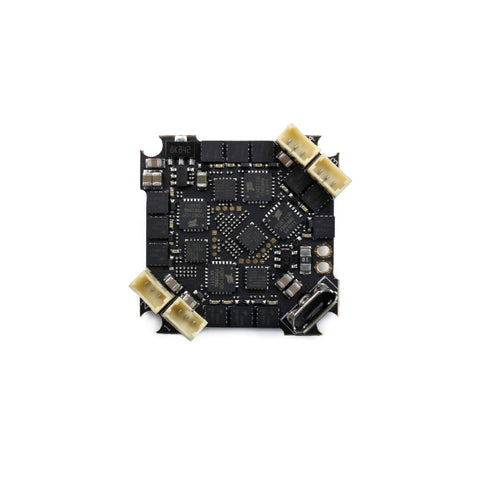

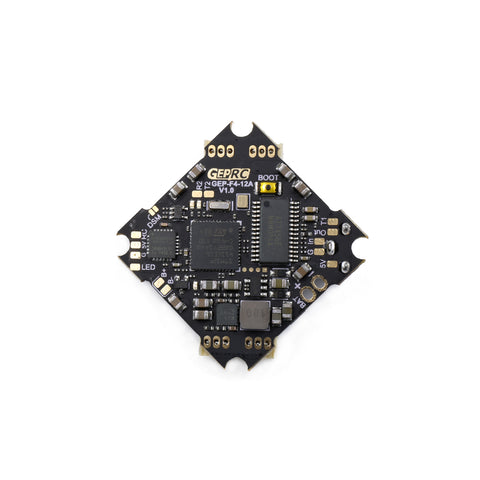

GEPRC 12A F4 Brushless FC 2-4S

$42.99


Delivery and Shipping

Add some general information about your delivery and shipping policies.

We found GEPRC's F4 12A FC and are very excited to bring you an FC that can handle 4S. This is a great platform for Toothpick class. We can't wait to see what you build! Check out our Motor Section for some Brushless Power!

Binding info at the bottom:

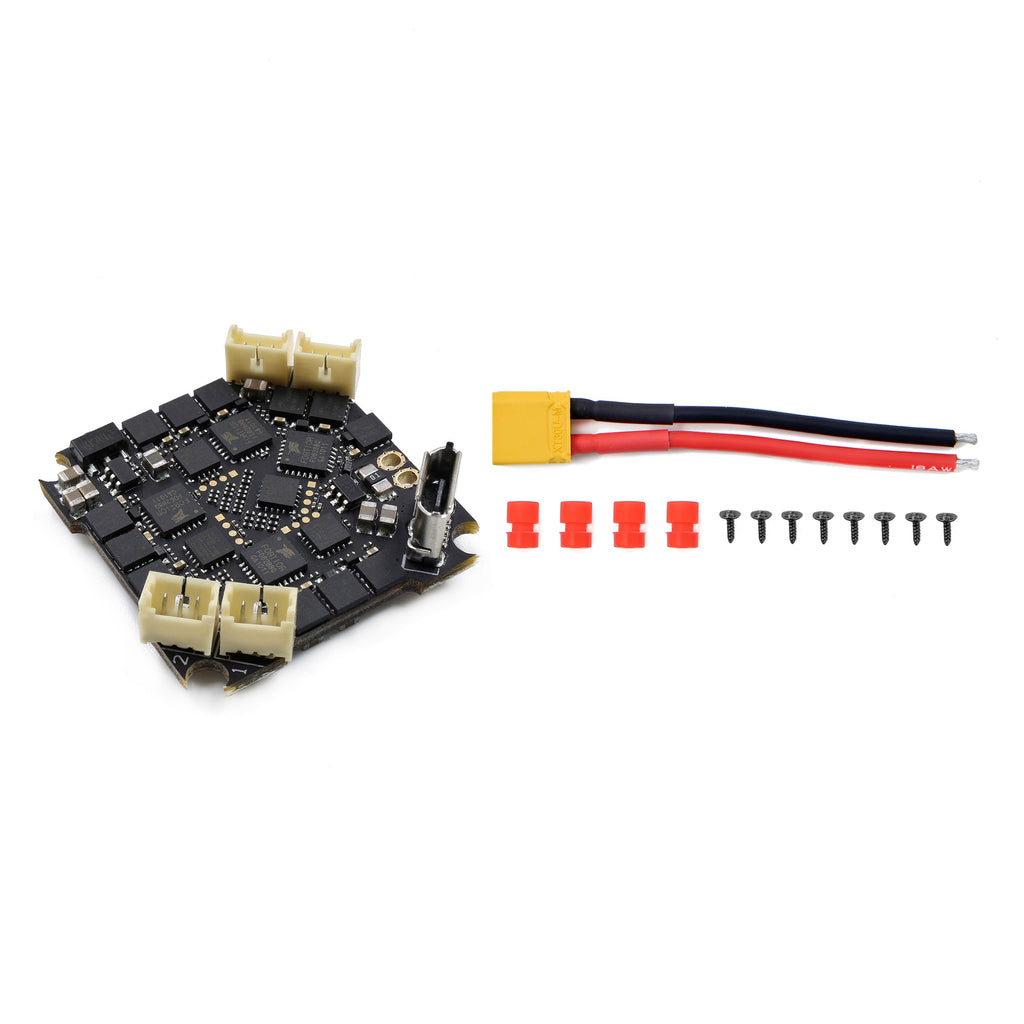

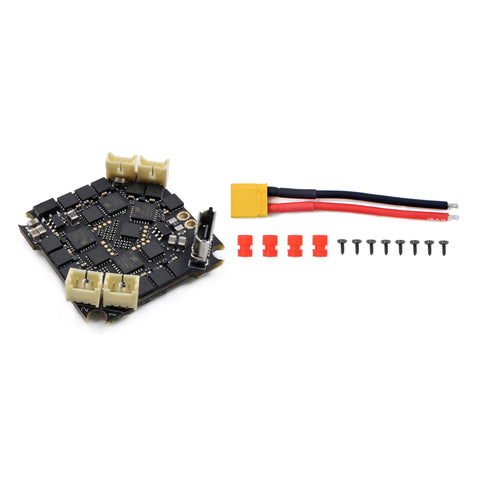

Included:

1X GEP-12A-F4

1X Power Cable

8x Screw

4X Soft Silicone

Receiver's Supported:

  1. Frsky XM/XM+/R-XSR
  2. Futaba Receiver
  3. DSM/DSMX
  4. FlySky Receiver
  5. TBS Crossfire Receivers
  6. AC900
  7. Most receivers that support SBUS

Spec's:

OSD: BetaFlight OSD w/ AT7456E chip

BEC Output: 5V@1A

Integrated LC Filter

Firmware target: MATEKF411

Size: 28.5x28.5mm board,25.5mm mounting holes (M2)

Installing Hole: 25.5x25.5mm, M2

ESC MCU: BB21F16G

Continuous current: 12A

Input:2-4s lipo

Supports Dshot600, Oneshot, Multishot

Current meter: 210

Target: G_H_30



Features:

BLheli_S 12A ESC GEP-12A-F4 the largest support 4S Lipo battery, with Current meter

Silica gel shock absorption, solve the problem of vibration

F411 Flight Controller

MPU6000 Gyro

Include Buzzer pad

weight: 5.6g
